Revolutionary CNC Grinding Wheel Dresser
Transform your grinding operations with precision wheel dressing technology that delivers unmatched accuracy, reduces downtime, and maximizes productivity.
Get in touch with Proe Machinery Company
Grinding Wheel Dressing MachineLeading Grinding Wheel Dressing Machine Manufacturers in China
Our diamond dressing machines achieve precision of micron level, extend wheel life by 300%, and enhance productivity.
Grinding Wheel Dressing Machine for sale
The shaping of the dressed grinding wheel is to be accomplished by exploiting the principle of the speed disparity between the trimmed grinding wheel and the trimmed grinding wheel of the machine.
Adapted for processing diamonds, CBN, and various other grinding wheels, with the ability to create different shapes such as planes, angles, curves, and even molded ones.
Fitted with Japanese high-precision tapered roller bearings to guarantee smooth and exact rotary shaft movement.
It comes with a CCD photography unit that magnifies 15–120x and a 19-inch LCD for instant measuring of arcs, angles, and sizes.
Utilizes Taiwan-made high-quality linear rails, ball screws, and light-gauge rulers for exact positioning, width, and arc changes.
Permits the modification of dressing wheel speed, swing speed, stroke size, and grinding wheel positioning.
Optical dimension units enable precise width, position, and inspection measurements with an accuracy of up to 0.005×0.01mm.
Understanding Your Grinding Challenges
Each grinding wheel’s major issues are common to all manufacturers. As the global problem solvers we are, we have already helped hundreds of companies in similar situations, which is why we understand your difficulties.
The use of worn-out wheels in grinding processes results in non-uniform surface finishes, leading to parts being rejected and numerous complaints from customers.
✓ Our Solution: Dressing to the last precision makes a perfect wheel, no more, no less, thereby consistently producing high-quality surface finishes.
Grinding wheels sent for dressing and replacement, or just dressing, take up a lot of production time and money.
✓ Our Solution: While production is still on, wheels are swathed offline. The quick setup decreases the time taken for wheel changeover by 70%.
Improper dressing or neglect causes the wheel to break down sooner than scheduled, thus operators suffer higher costs.
✓ Our Solution: Dressing well prolongs the life of the grinding wheel up to three times, thus making consumable costs very low.
✓ Our Solution: Our top-notch truing technology guarantees wheel centricity that is perfect, so no vibration and accuracy is getting better.
✓ Our Solution: Dressing to the last precision makes a perfect wheel, no more, no less, thereby consistently producing high-quality surface finishes.
Any manual dressing done on custom profiles and intricate geometries is likely to be inconsistent or just plain impossible.
✓ Our Solution: Full CNC control assures the precise dressing of any custom wheel geometry with perfect repeatability.
Manual dressing requires highly experienced operators, and even then, the same operator must be present for the entire shift to ensure uniform results.
✓ Our Solution: The HMI interface is user-friendly, and the automated programs enable any operator to produce results equivalent to those of an expert.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| X, Y-axis grille resolution (optional) | 0.001 mm |
| Diamond grinding wheel max diameter | Ø 250 mm |
| Diamond grinding wheel min diameter | Ø 80 mm |
| Grinding wheel max thickness | 20 mm |
| Grinding wheel aperture | 31.75 mm |
| Grinding wheel speed | 100 to 1500 R.P.M. (speed regulation) |
| Grinding wheel travel around | 120 mm |
| Front and rear travel of the grinding wheel | 120 mm |
| Grinding wheel arc | Ø 0 ~ 15 mm |
| Dressing grinding wheel (SIC) | Ø 180 x 10 x Ø 31.75 mm |
| Dressing grinding wheel speed | 1400-2800 R.P.M. (constant speed) |
| Total power | 1.5 KW |
| Silicon carbide grinding wheel motor power | 0.6 KW |
| Trimmed diamond grinding wheel motor power | 0.75 KW |
| Back-to-back walkway motor power | 0.025 KW |
Performance Metrics That Matter
Make the most out of your grinding processes by means of our exceptional Grinding Wheel Dressing Machine. Get excellent accuracy, prolong the use of your grinding wheels, and raise the general effectiveness with our groundbreaking dressing solutions. Discover the merits of a first-class dressing machine for your industrial requirements.
70%
Reduction in Setup Time
300%
Extended Wheel Life
99.9%
Uptime Reliability
60%
Lower Consumable Costs

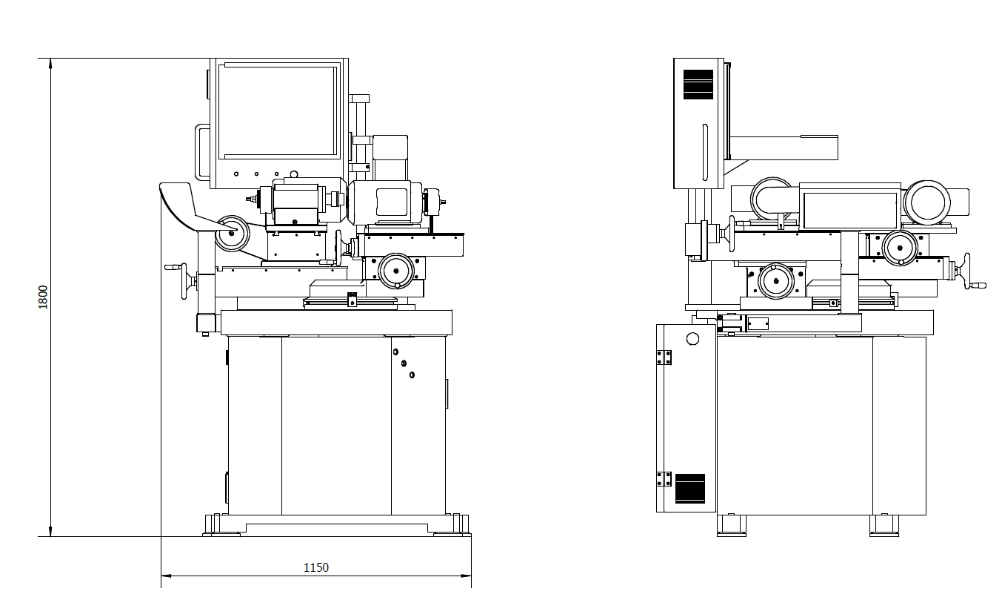

Technical Drawing of the X3 Grinding Wheel Dressing Machine
Explore the detailed technical drawing of the X3 Grinding Wheel Dressing Machine. Get an in-depth look at its design and specifications.
Industrial Applications of Grinding Wheel Dressing Machine
Our grinding wheel dressing machines serve diverse industries requiring precision grinding operations:
01
🏭 Automotive Manufacturing
02
✈️ Aerospace Components
03
🔩 Tool & Die Making
04
⚙️ Bearing Production
05
🏗️ Heavy Machinery
06
💉 Medical Device Manufacturing
07
🔧 Precision Machining
08
🎯 Gear Manufacturing
09
⚡ Energy Generation Equipment
10
🏢 General Metalworking
11
🪵 Woodworking Industries
12
💎 Superabrasive Tool Production
Specific Use Cases
Compare Your Options
| Feature | Manual Dressing | Outsourced Dressing | Our CNC Dresser |
|---|---|---|---|
| Precision | Operator-dependent, inconsistent | Good, but variable | Excellent - Sub-micron repeatability |
| Setup Time | 30-60 minutes per wheel | 2-5 days turnaround | 5-10 minutes per wheel |
| Production Impact | Significant downtime | Major disruption | Zero - Dress offline |
| Skill Required | High - Expert operators | None | Low - Any operator |
| Cost Per Dress | $50-150 (labor + mistakes) | $200-500 | $10-20 (consumables only) |
| Custom Profiles | Difficult, inconsistent | Expensive, slow | Easy - Fully programmable |
| Wheel Life Extension | Minimal | Moderate | Up to 300% increase |
| Quality Consistency | Poor - Varies by operator/shift | Good - But delayed feedback | Excellent - Perfect repeatability |
Suzhou Proe Machinery to Showcase Innovative Grinding Wheel Dressing Solutions at CCMT 2026
March 24, 2026
SUZHOU, CHINA – Suzhou Proe Machinery Co., Ltd. (also known as Suzhou Guicheng Haoke Intelligent Equipment Co., Ltd) is pleased to announce its participation…
CNC Grinding Machine Software: Control & Grinder Dresser
December 31, 2025
CNC grinding machines have modernized the manufacturing world by offering unbeatable accuracy and efficiency in shaping materials. Of course, the…
Grinding Wheel Dressing: Rotary Tool Tips for Abrasive Machines
December 30, 2025
It is important for aggressive machines to be precisely operated, with the efficient operation of grinding wheels highly emphasized while…
Dress a Grinding Wheel: Guide for Optimal Grinder Machine Use
December 27, 2025
Grinding wheels are a significant part of machining and manufacturing industries, though their efficiency can be greatly compromised due to…
Radius & Angle Wheel Dresser: Essential Tool for Precision Grinding
December 25, 2025
Grinding operations are known for their extreme precision, and the correct tools are the first step to achieving that precision.…
Diamond Dresser for Vitrified Bond CBN/Diamond Grinding Wheel
December 19, 2025
Grinding wheels are all about a cryptic, hard-appearing wonder for all the precision remarkable characteristics in the industries. The diamond…
Expert Guides to Grinding Wheel Dressing Machine
What Is the Purpose of Dressing a Grinding Wheel?
Regular dressing of a grinding wheel removes its dullness and restores its efficiency by exposing new, sharp abrasive grains, eliminating dull grains, clogged spaces, and surplus material.
How Do You Know When a Grinding Wheel Is Bad?
You can tell a grinding wheel is bad if it shows signs like uneven wear, dull or glazed surfaces, poor cutting performance, excessive vibration, or if it reaches the discard size as determined by the machine’s guard
What Is the Difference Between Dressing and Truing of Grinding Wheel?
The difference between dressing and truing lies in their purpose: dressing sharpens the grinding wheel by exposing fresh abrasive grains, while truing corrects the wheel’s shape and ensures it is concentric for accurate grinding
What Are the Three Mechanisms of Grinding Wheel Wear?
The three mechanisms of grinding wheel wear are grain fracture (where abrasive grains break during cutting), attritional wear (abrasive grains lose sharpness), and bond fracture (the bond holding grains breaks, releasing them)
What Is a Dressing Stick for Grinding Wheels?
A dressing stick for grinding wheels is a tool made of abrasive materials like silicon carbide or aluminum oxide, used to clean, sharpen, and maintain grinding wheels by removing debris and glazing
What Our Customers Say
Discover what our clients are saying about their experiences with us. We take immense pride in empowering individuals to achieve their aspirations.
“I have been in partnership with this company for over 20 years. They have always been there for me when I needed specially designed equipment or tooling. We have never experienced that a job is too small or too big for them to handle. Their input has been invaluable in making Medical Technologies a leading player in the industry.”
Emily Johnson
Medical Technology Solutions
The Proe machines are always made strong and designed efficiently. The whole machine, from the mechanical and manual parts to the PLC/HMI interface, is designed with great thought. We can quickly set up new jobs and operate efficiently because we are assured the equipment will work dependably without constant operator intervention.”
David Smith
Medical Device Contract Manufacturing
“We have minimized production time significantly with our dressing machine. The fact that we can now dress the grinding wheels offline, by ourselves, has made a major difference in our operation. Setting up is easy, the screen is user-friendly, and the outcomes are always accurate. The 60% decrease in wheel costs, along with quality improvement, is the case.”
Sophia Miller
Automotive Precision Parts
“Proe is undoubtedly the best vendor choice for anyone interested in creating an innovative and very different custom machine. They provided me with knowledge and granted customer service, which was the main reason for exceeding my expectations during the concept, design, build, and implementation phases of my project. I will be pleased with the results, so I suggest using R&D for your next custom machine project.”
William Brown
Precision Manufacturing Company
“When you buy a Proe machine, you not only get the latest and the best grinding technology, but also the entire grinding process along with unparalleled customer support. Tridex has a very competent support team to give you engineering and technical help. This service has been a significant factor in our success concerning new product development (NPD).”
James Wilson
Advanced Medical Devices Inc.
Frequently Asked Questions (FAQs)
Explore answers to frequently asked questions about the Grinding Wheel Dressing Machine. Should your query remain unanswered, please do not hesitate to contact us.
A: A Grinding Wheel Dressing Machine, which is often called a dressing and truing machine, serves to sharpen and dress grinding wheels to maintain their precise contours and performance. All of these are considered very important where working relation exists in mechanical applications.
A: Innovative operation in the machine leads to more efficient, durable, and versatile machinery. Innovative designs in the operations of the machines would enable the wheel to be easily dressed and maintain the highest standards in its application.
A: The truing spindle facilitates the accurate rotation of the grinding wheel for true and perfect dress so that the wheel retains its shape and carries the grit needed to grind in hard materials.
A: Yes, many types of grinding wheel dressing machines can be stand-alone machines. This facilitates operational flexibility, as they can be mounted at various locations without being integrated with other systems.
A: After dressing, the grinding wheels require almost no maintenance except that they should neither be dirty nor improperly mounted for the next operation. Good performance is maintained while a regular inspection is recommended to assess any wear and tear.
A: Yes, like most modern grinding wheel dressing machines, these machines can also be considered relatively easy ones with which one can perform dressing to precision with very little training.
A: These machines are equipped to deal with many hard materials. Thus, they come in handy when grinding hard substances, especially for precision.
A: Dressing wheels offline leads to uninterrupted operation of the main grinding machine, further upping the efficiency and decreasing downtime. Hence, whoever is dressing the wheels can complete this task while the grinding operation is in full swing.
A: Yes, many manufacturers provide customized solutions to meet operational requirements so that any particular machine will do just fine with different wheel sizes and types with precision.
