Revolutionary CNC Grinding Wheel Dresser
Transform your grinding operations with precision wheel dressing technology that delivers unmatched accuracy, reduces downtime, and maximizes productivity.
Get in touch with Proe Machinery Company
Automatic Wheel Dressing and Truing MachineLeading Automatic Wheel Dressing and Truing Machine Manufacturers in China
Revolutionize Grinding Processes with Cutting-Edge Automation. Minimise Non-Productive Time, Optimize Wheel Life and Deliver Accurate Results Always.
Automatic Wheel Dressing And Truing Machine For Sale
Make manufacturing better with the use of our machine for Automatic Wheel Dressing and Truing. Increase precision and production by using systems of automation and machines with high levels of accuracy. Order today!

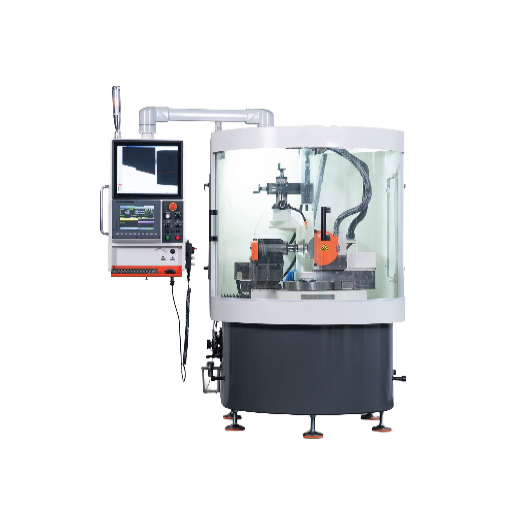

The five-axis CNC grinding tool wheel dresser is an Automatic Wheel Dressing and Truing Machine ready for diamond or CBN grinding tools used in the CNC machine tool grinder.
This independent dresser supports different types of dressing functions with stability and precision for any defined inner-diameter, outer- diameter, inclined surfaces as well as arcs.
It comes with a CCD photography unit that magnifies 15–120x and a 19-inch LCD for instant measuring of arcs, angles, and sizes.
One can either import designs or sketch out DXF models for dressings by deviation from the actual and theoretical curves of the grinding wheel.
Facilitates dressing both automatically and manually also comes with ready grinding wheels drawings and alignment, rotation and feeding are performed automatically.
It has a closed hood which can operate dry, mist and wet dressing and also has mechanisms of dust extraction and fluid maintenance for hygiene purposes.
Your Grinding Challenges, Solved
Our professional services can assist you in overcoming your grinding difficulties. We can tackle any intricate grinding material with accuracy and speed, and we guarantee to deliver excellent services that conform to your specific requirements.
❌ Manual dressing stops production every 2-4 hours
Conventional wheel servicing practices call for the suspension of grinding activities, causing us to stop and waste working hours repeatedly.
✅ Automatic Wheel Dressing and Truing Machine makes offline dressing possible which allows unceasing processes
❌ The manual trimming of the wheels results in uneven profiles.
Inaccuracies and surface defects caused by poor wheel dressing, and in particular that performed manually, lead to higher scrap rates.
✅ The repeatability within ±0.0001″ and the achieving of desired patterns are minimized by CNC technology, which also helps to control the shots.
❌ Dress the diamond and CBN wheels more often than required
Too much dressing eats up a significant portion of the wheel unnecessarily and ends up one replacing the wheel even before it wears out.
✅ Wheel life is extended by 50–60% using optimum dressing algorithms.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Dressed Wheel Spindle | HSK50 |
| Tightening Method | Pull-back type |
| Dressed Wheel Flange Interface | Optional, customer-specific spindle interface |
| Dressed Wheel Diameter | 30–250 mm |
| Dressed Wheel Max Width | 40 mm |
| Dressed Wheel Spindle Speed | 100–1500 RPM (Stepless) |
| Dressing Wheel Size (SiC) | Φ175 (max. 250) × 10 × Φ32 |
| Dressing Wheel Spindle Speed (SiC) | 100–2800 RPM |
| X-Axis Max Travel | 100 mm |
| X-Axis Resolution | 0.001 mm |
| Y-Axis Max Travel | 100 mm |
| Y-Axis Resolution | 0.001 mm |
| C-Axis Max Travel | +95° / -90° |
| C-Axis Resolution | 0.01° |
| A-Axis Max Travel | 190 mm |
| A-Axis Resolution | 0.001 mm |
| B-Axis Max Travel | 180 mm |
| B-Axis Resolution | 0.001 mm |
| Spindle Power | ≥3 KW |
| Measurement Magnification | 16X–100X |
| Measurement Software | Specially configured measurement software |
| CCD Camera | High-resolution camera |
| LED Light | Low light intensity |
| 19-inch All-in-One Computer | 1 set |
| Measurement Function | Includes measurement and plotting kinetics |
| Cover | Sealed hood included |
| Grinding Methods | Dry, wet, and spray dressing |
| Vacuum Cleaner | Optional |
| Total Rated Power | 6.85 KW |
| Single Unit Capacity | 8.0 kVA |
| Supply Voltage | 3-phase 5-wire, 380V, 50Hz |
Performance Metrics That Matter
Concentrate on what is most effective to trace. The machines we provide improve performance in all aspects that make a direct contribution to the productivity of a business.
70%
Reduction in Setup Time
50%
Extended Wheel Life
25%
Uptime Reliability
40%
Lower Scrap Rate

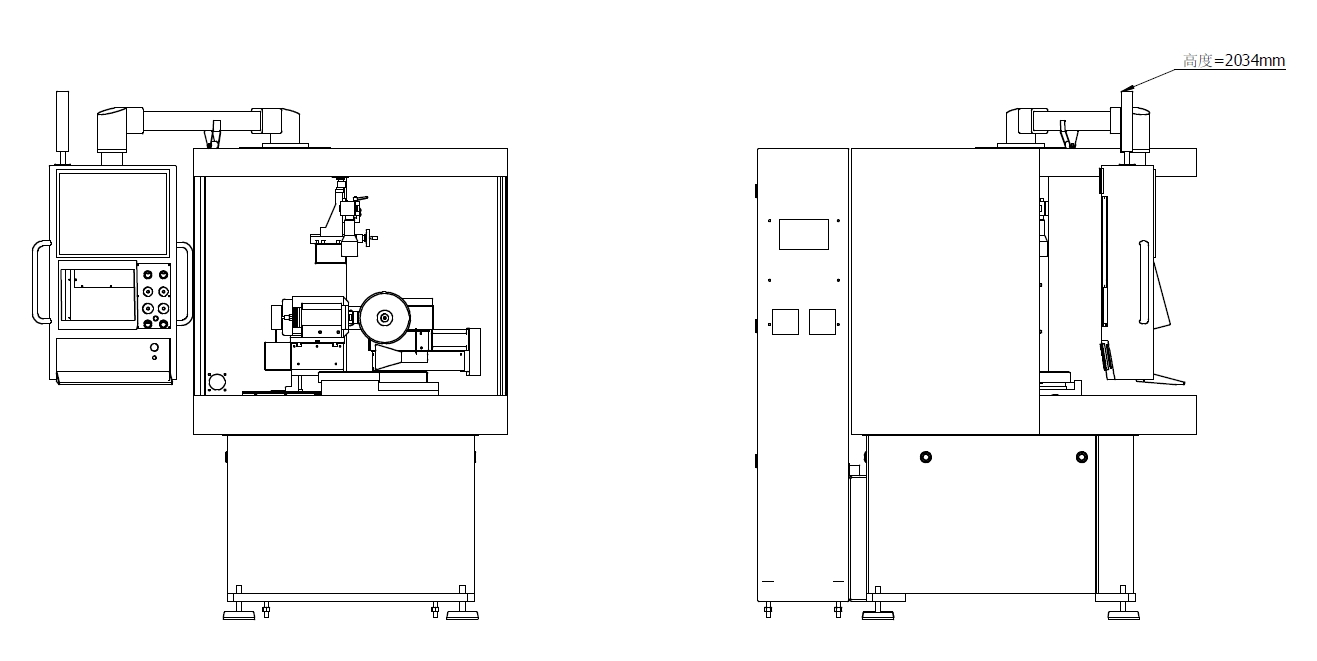

Technical Drawing of the X5 Automatic Wheel Dressing and Truing Machine
Explore the detailed technical drawing of the X5 Automatic Wheel Dressing and Truing Machine. Discover its components, assembly, and operational specifications for precision engineering
Industrial Applications of Automatic Wheel Dressing and Truing Machine
The top manufacturers of various sectors rely on our automatic wheel dressing and truing machines:
01
🚗 Automotive Manufacturing
02
✈️ Aerospace & Defense
03
🔧 Tool & Die Making
04
Tool Manufacturing
05
📱 3C Electronics
06
⚙️ Precision Bearing Manufacturing
Specific Use Cases
Compare Your Options
| Factor | Manual Dressing | Our Automatic System |
|---|---|---|
| Processing Time | 60 minutes per wheel ✗ | 15 minutes per wheel ✓ |
| Accuracy | ±0.001" (operator dependent) ✗ | ±0.0001" repeatable ✓ |
| Consistency | High variability between operators ✗ | Perfect repeatability ✓ |
| Complex Profiles | Difficult or impossible ✗ | Automated CAD/CAM programming ✓ |
| Production Impact | Stops grinding during dressing ✗ | Offline dressing, continuous production ✓ |
| Skill Required | Months of training needed ✗ | Minimal training required ✓ |
| Wheel Life Extension | Baseline (100%) ✗ | 200-300% improvement ✓ |
| Documentation | Manual logs, inconsistent ✗ | Automatic data logging & reporting ✓ |
Suzhou Proe Machinery to Showcase Innovative Grinding Wheel Dressing Solutions at CCMT 2026
March 24, 2026
SUZHOU, CHINA – Suzhou Proe Machinery Co., Ltd. (also known as Suzhou Guicheng Haoke Intelligent Equipment Co., Ltd) is pleased to announce its participation…
CNC Grinding Machine Software: Control & Grinder Dresser
December 31, 2025
CNC grinding machines have modernized the manufacturing world by offering unbeatable accuracy and efficiency in shaping materials. Of course, the…
Grinding Wheel Dressing: Rotary Tool Tips for Abrasive Machines
December 30, 2025
It is important for aggressive machines to be precisely operated, with the efficient operation of grinding wheels highly emphasized while…
Dress a Grinding Wheel: Guide for Optimal Grinder Machine Use
December 27, 2025
Grinding wheels are a significant part of machining and manufacturing industries, though their efficiency can be greatly compromised due to…
Radius & Angle Wheel Dresser: Essential Tool for Precision Grinding
December 25, 2025
Grinding operations are known for their extreme precision, and the correct tools are the first step to achieving that precision.…
Diamond Dresser for Vitrified Bond CBN/Diamond Grinding Wheel
December 19, 2025
Grinding wheels are all about a cryptic, hard-appearing wonder for all the precision remarkable characteristics in the industries. The diamond…
Expert Guides to Automatic Wheel Dressing and Truing Machine
What Is The Best Way To Dress A Grinding Wheel?
Utilizing appropriate truing and dressing instruments to restore the surface of the wheel, reshape and balance it for proper functioning is the most suitable way of dressing a grinding wheel.
Which Tool Is Used To Truing A Grinding Wheel?
In order to adjust the grinding wheel accurately, the dressing or truing tool is utilized. These tools comprise of several variations such as hand operated truing sticks and cutter dressers.
Which Tool Is Used To Truing A Grinding Wheel?
A grinding wheel is deemed worn out when it displays characteristics like diminished cutting ability, too much vibration, prominent cracks, or when the diameter is reduced so much that it cannot be used safely or functionally anymore.
When is a Grinding Wheel Worn Out?
To ensure the durability of an engine-consumable called bench grinder, one has to remove any build-up on the wheel using a levelling cleaning tool like a diamond dresser and scrub all the dirt from the surface of the wheel keeping its surface as level and as sharp as possible.
What Our Customers Say
Discover what our clients are saying about their experiences with us. We take immense pride in empowering individuals to achieve their aspirations.
The Automatic Wheel Dressing and Truing Machine FC-250W is extremely robust, it is very effective in dressing wheel of our cutter grinder and the process is repeatable. We are keen in tolerance and repeatability so the Rush Dressing machine perfectly suits to us! Also setting up and training was also commendable.
John M
Tool & Die Shop Manager
When I first purchased a grinding machine, the truer was outside my budget limitations. Right before purchasing my third grinding machine, I opted for the Rush Machinery Wheel Truer and immediately regretted not getting it sooner, as it is very helpful.
David R.
Manufacturing Engineer
With our concept design, fabrication and construction processes so on point, we surpassed expectations in terms of knowledge and customer satisfaction. Missions are also accomplished fast with one of a kind product!
Sarah K.
Operational Director
Upon this purchase, experiencing the best and up-to-date technology for grinding, and having a full-in-one grinding procedure is possible as well as extraordinary levels of customer’s care service. The team are skilled and offer both engineering and technical aid This has been crucial as far as NPD goes.
Michael T
VP of Manufacturing
I joined this group about 10 years ago and till today I’m still amazed at how they can come up with solutions to any problem. The rigidity of the machine is very good and it maintains the repeatability of processes very well, which is critical to the most of our aerospace customers expectations.
Robert L
Quality Manager
Frequently Asked Questions (FAQs)
Explore answers to frequently asked questions about the Automatic Wheel Dressing and Truing Machine. Should your query remain unanswered, please do not hesitate to contact us.
A: Truing deals with the issue of ring-shaped imperfections of the wheel by giving it a perfect contour and thus eliminating any deviation from its center. This is normally the case in fitting a brand new wheel or if the state of the wheel is perfect. Dressing, on the other hand, is an abrasive conditioning action so as to restore worn-out edges of a wheel useful for cutting. These functions are separate and independent, but our automatic machine provides the services of each at the same time, ensuring maximum productivity.
A: Dressing frequency involves different aspects such as the type of material and its concentration, the parameters of the grinding operation, the standard of finish required, and the condition of the wheel. Given that the dressing need arises from some changes during grinding, it is typical to notice several things: a drop in the grinding efficiency, increase in the grinding force or power, the roughness of the surface, glazing of the wheel surface, burning of the parts, and enhancement of oscillation and chatter. Our automatic system can be adapted to allow dressing at optimum intervals, be it an interval at every few parts, a set of time lapses, or wheel conditions for instance sensors on the machine that predicts the need for dressing.
A: Absolutely! Our technologies are fit for all purposes. We offer a range of quick-release spindle systems to suit all the main tape shapes in the industrial world. These include ISO taps 40 and 50; BT taps 40 and 50; HSK taps 50 and 63; Walter Power; the Sopko adapter; and custom as well. The multi-spindle applications can be used with all types of independent CNC systems, except those specified above. It does not matter whether they are Studer, Kellenberger, Okuma, Cincinnati, or even Haas. The system will accommodate any type of equipment you have. In addition, application engineers will evaluate your setup to make sure there are no compatibility issues.
A: An average cycle of dressing a wheel takes between 12 to 18 minutes, depending on the size and material of the wheel, as well as the profile needed. Within which you do manual dressing for 45 to 60 minutes on heads, the savings are then seen at 70 to 75 percent. In other words, your machines no longer need to stop work for the process of dressing a wheel. It is possible to dress up the wheels during the lunch break, between shifts or anywhere else without having to stop production. Most customers utilize several grinding machines but only have 1-2 stations for dressing, with set up time drastically minimized, thus increasing output.
A: One of the biggest advantages comes from the fact that there is no requirement for people with high skill levels in wheel dressing. This is because it is a PLC controlled machine operated through an HMI touch screen. Simple operations include sitting the wheel on the mandrel, choosing profile programme and pressing the start button. This eliminates the need to dress the wheel manually. Most operators can get the jist of this process within 2–3 days of training (which we offer). Imagine even junior operators would be suitable for wheel dressing while all other skilled grinders would be on production. Such a system can accommodate any number of wheel profiles; therefore, set-ups involve merely putting it up on the screen and selecting them.
A: Outlined below are the services that we offer: Installation and commissioning overseen by service engineers with inside knowledge of products, Training on site ( 3 to 5 days for users and those in charge of maintenance), All documentation,( users handbooks, maintenance programs, components lists) supplied as standard, 24 hours 7 days a week hotline for technical assistance and remote connection availability, Availability and delivery of spare parts (1-2 days lead time), Servicing plans, Changes to the software (where applicable), Supporting of the program carry out engineering tasks to optimise the process. We couple our support with genuine interest in your achievement as well.
A: Recommendation of a solution however optimized it may be is dependent on the customer’s understanding of the need. Here is how this works: 1 Consultation at no charge with the customer’s representatives with regards to their ambitions. – Grinding, challenges and scope assessment. 2 Consolidation of applied aspects of their grinding and the results of the previous analysis. – The company decided to employ a very aggressive wheel configuration in its operations. As regards your metric system and output rates. 3 We use patented technology, tailored editions and even extr. To help you find a solution demonstrated by tangible output, dcreated and understood a wheel. 4 Setting up a dedicated configuration as each customer requires. 5 Facilitating assembly providing well-fitted equipment which mess mess free working conditions. For the 42 years in the engineering field, we have managed to provide solutions to grinding problems in at least 50 industries. Some way if we know that the system won’t work, we will leave. Bearing a sale more or your precious years to us is a problem with such honesty.
A: Absolutely, let me explain some. You may request a virtual demo, which involves a demonstration of the machine in question in operation through a video conference. Another alternative is coming over to the facility, where there is an introduction to various machines being demonstrated. We know how to assist you in travelling, should there be any need. Furthermore, it is also possible to visit the customers whose practice is close to what you do, so that you may watch production processes. Also, for customers who qualify, machines can be bespoke for a certain length of time for their purposes. Last but not least, you can always contact us to arrange for the demonstration to fit your needs.
A: The maintenance requirements for our machines are Next to zero: Daily: Verify coolant level and cleanliness (5 minutes), Weekly: The condition of the dressing tools is inspected and filters are cleaned (15 minutes), Monthly: Apply lubricants on ball screws and bearings, look for any unusual wear signs (30 minutes), Quarterly: Complete checks, perform calibration checks (2 hours). The solid cast iron frame and comprehensive range of top quality parts (SKF bearings, THK linear guides, Japanese servo motors) offer a long operating life of the machine with minimum attention. Detailed maintenance plans can be found, and an expert service team is available to provide annual preventive maintenance services so that your system will operate at maximum performance levels.
